pellet mill die deep hole drilling machine
Description:

Hole size Range:φ1-5mm/φ3-16mm

machining:Horizontal  and vertical

Max Hole Depth:

Number of spindle:4/8


  • Details

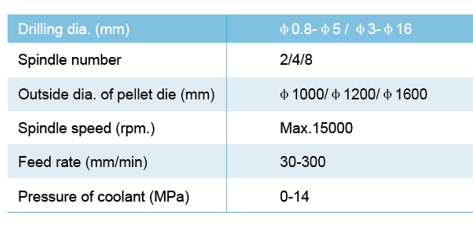

  • Specification
  • Video


    The machine is specially designed to drill pellet mill die.It has total(4)CNC controlled horizontal gun drilling spindles as the most cost efficient pellet mill die mould production machine.The trouble free production process is resulted in free falling chips from horizontal spindle design.

    Operation principle

    The work pieces need to be fixed on CNC indexing table, clamped by 3-jaw/4-jaw chuck.

    2x2 drilling spindles are oppositely mounted on the drilling slides

    On each slide, the distance between 2 spindles can be adjusted

    Features

    1.Siemens or Fanuc

    2.3/4-jaw chuck for work piece clamping

    3.High-pressure coolant supply with filter system

    4.High precision indexing table

    5.High efficiency poeer saving


    SKH series pellet mill die deep hole drilling machine.png
